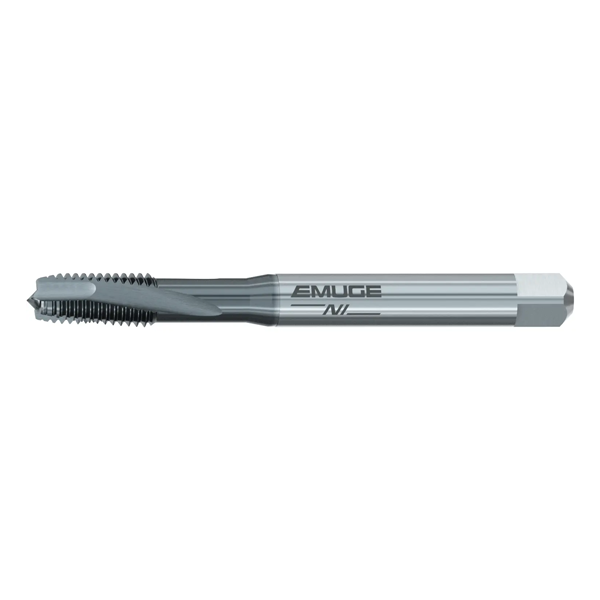

MJ 3 x 0.5 - Emuge Spiral Flute 4HX Tolerance NI HSSE-PM Tap TICN Coated
B438J411.1229
MJ 3 x 0.5 - SF - NI - PM - TICN
HSSE-PM taps for applications in nickel, cobalt, iron and titanium alloys.
TICN coating
Product features and benefits:
- Tap for blind hole threads in long-chipping material.
- DIN 371
- Chamfer Form C
- Additional chip divider "F" (clearance grinding) for narrow rolled or small broken chips.
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

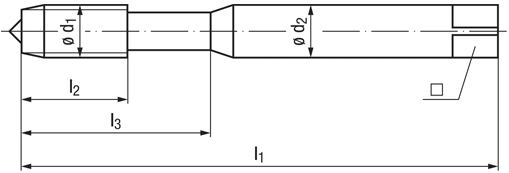

| Thread | MJ |
| Nominal Diameter (d1) |
3mm |
| Pitch | 0.5mm |
| Coolant Supply | Without |
| Geometry | NI |
| Shank Diameter (d2) | 3.5mm |
| OAL (l1) | 56mm |
| Length of cutting edge (l2) | 11mm |
| Usable Length (l3) | 18mm |
| Square ■ | 2.7mm |
| Tap hole diameter | 2.6mm |
