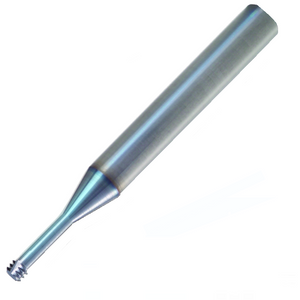

MJ 3x0.5 3xDo - 0.5mm Pitch MJ DT3 Miniature Internal Carbide Thread Mill - (MilliPro Series - Vardex)
102-00074
Thread Milling TM Solid Carbide MilliPro IN 0.5 mm MJ Shank Diameter 6 (mm) Cutting Diameter 2.4 (mm) Tool Overhang 9.2 (mm) VTH Grade
- For Internal Machining
- For MJ threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
| Thread Standard | MJ |
| Pitch | 0.5mm |
| EXT/INT | IN |
| Coolant | No |
| L | 9.2mm |
| L1 | 9.2mm |
| Le | 1.5mm |
| Cutting Dia | 2.4mm |
| Z | 3 |
| Zt | 3 |
| Grade | VTH |
| Coating | TiCN |
| Description | D3T06024L092-I0.5MJTMVTH |
| Shank Dia | 6mm |
