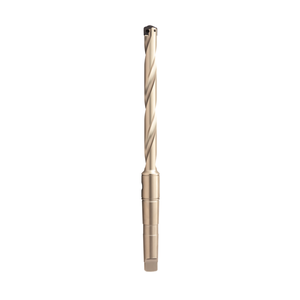

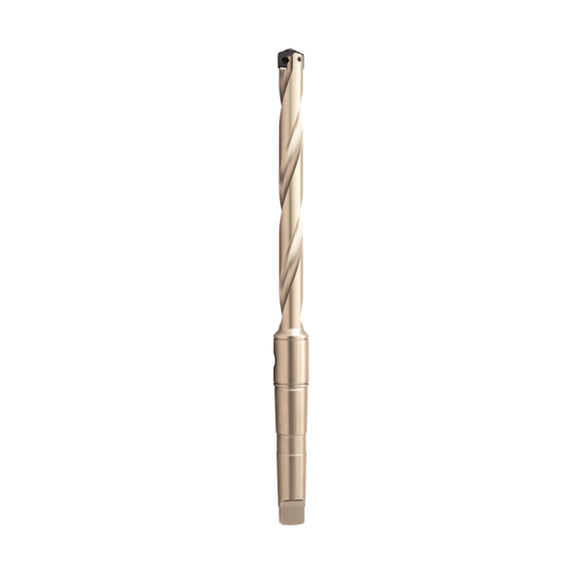

Spade Drill Holder - Morse Taper Shank - Spiral Flute Standard - (63.50mm - 88.90mm) - 884250005M
884250005M
Size 5 Spade Drill - Morse Taper Shank - Spiral Flute Standard - 63.50mm - 88.90mm
| DC | 63.5mm |
| DCX | 88.9mm |
|
LU |
273.1mm |
| OAL | 531.8mm |
| DCON | MT5 |
| LB | 317.5mm |
| LF | 388.9mm |
| CNT(S) | 1/2" BSP |
| RCA | SP0111 |
| Insert | Series 5, 6 |
