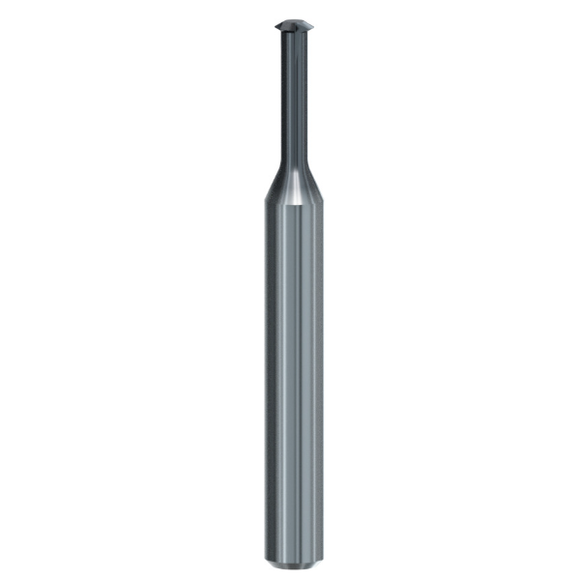

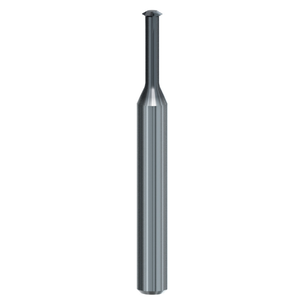

Nr 6 x 80-32 Pitch (mm) UNC Solid Carbide Circular Thread Milling Cutter - Emuge Franken

Nr 6 x 80-32 Pitch (mm) UNC Solid Carbide Circular Thread Milling Cutter - Emuge Franken

GF27370A.5005

EW Equipment

  • £85.50


ZGF-MULTI 3xD UNC

Machining of countersunk chamfer and internal thread.

  • From thread size UNC Nr.2/ UNF Nr.10.
  • Pre-drilled taphole necessary.
  • Chamfering of tap hole with face bevel possible.
  • Tool for several dimensions with corrected thread profile.
  • Independent of pitch.
  • For internal threads.
  • Without through coolant.

d1 Nr 6
Pitch (mm) 80-32
dF 2.7mm
d2 3mm
l1 42mm
l3 11.3mm
l4 28mm
Z 3
