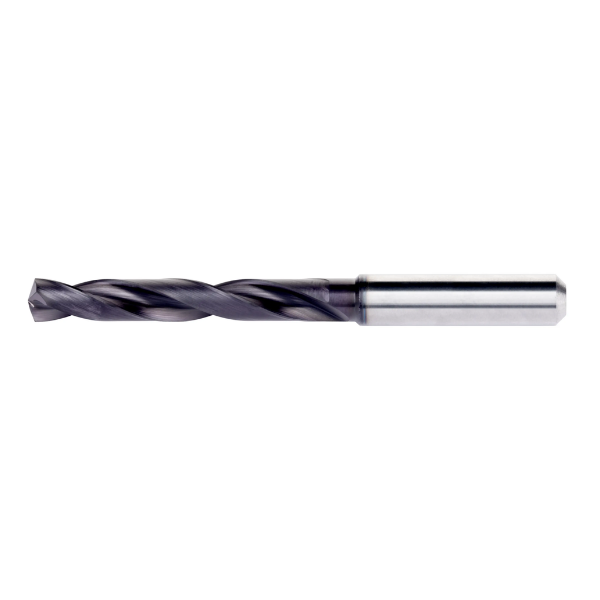

RS405 - 27/64 (10.72mm) Dormer FORCE X Solid Carbide 5xD Drill - TiAlN-Top Coated
RS40527/64
RS405
Cutting diameter 27/64 inches high-performance drill is specifically designed to deliver superior hole quality at high speeds and feeds (H9 hole tolerance for multi-materials). A 140° self-centering, 4-facet split point and CTW flute construction. DCON MS 12 mm, LCF 70 mm and OAL 118 mm. TiAlN-top coating increases surface hardness, enhances wear resistance, and extends tool life.

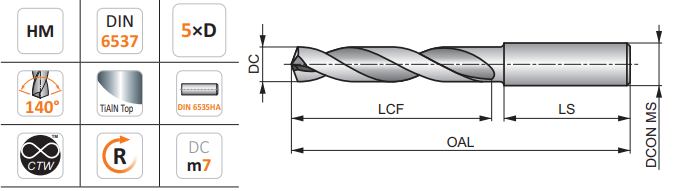

| Cutting Diameter - Inch (DC) | 27/64 |
| Cutting Diameter - mm (DC) | 10.72mm |
| Length Chip Flute (LCF) | 70.0mm |
| Overall Length (OAL) | 118.0mm |
| Shank Length (LS) | 45.0mm |
| Shank Diameter (DCON MS) | 12.00mm |
