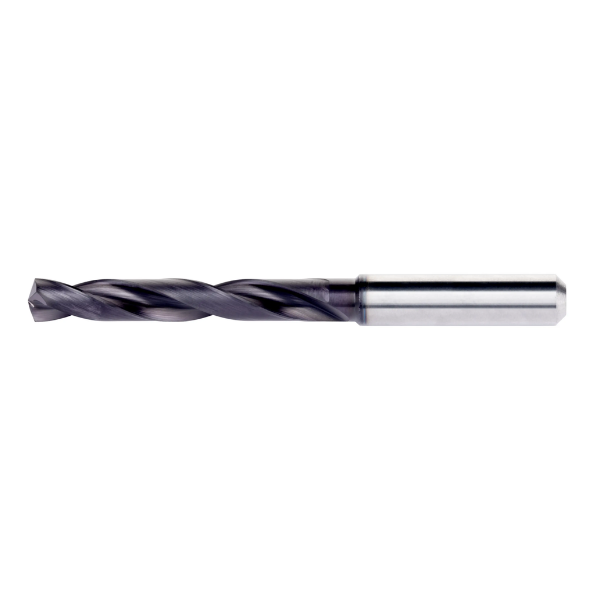

RS405 - 47/64 (18.65mm) Dormer FORCE X Solid Carbide 5xD Drill - TiAlN-Top Coated
RS40547/64
RS405
Cutting diameter 47/64 inches high-performance drill is specifically designed to deliver superior hole quality at high speeds and feeds (H9 hole tolerance for multi-materials). A 140° self-centering, 4-facet split point and CTW flute construction. DCON MS 20 mm, LCF 99 mm and OAL 153 mm. TiAlN-top coating increases surface hardness, enhances wear resistance, and extends tool life.

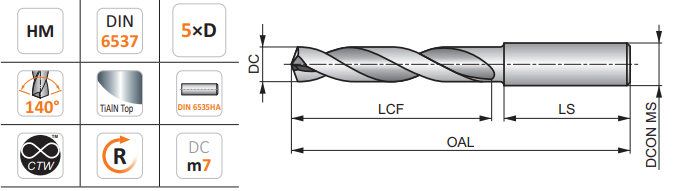

| Cutting Diameter - Inch (DC) | 47/64 |
| Cutting Diameter - mm (DC) | 18.65mm |
| Length Chip Flute (LCF) | 99.0mm |
| Overall Length (OAL) | 153.0mm |
| Shank Length (LS) | 50.0mm |
| Shank Diameter (DCON MS) | 20.00mm |
RS40547/64 RS405 - 47/64 (18.65MM) DORMER FORCE X SOLID CARBIDE 5XD DRILL - TIALN-TOP COATED
