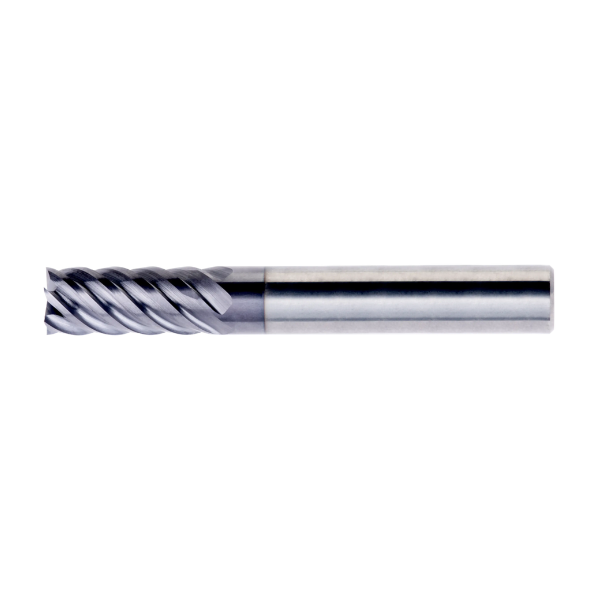

S966 - 20.0mm Dormer 6-Flute Solid Carbide End Mill - TiAlN Coated

S96620.0

Dormer Pramet

  • £143.56


S966

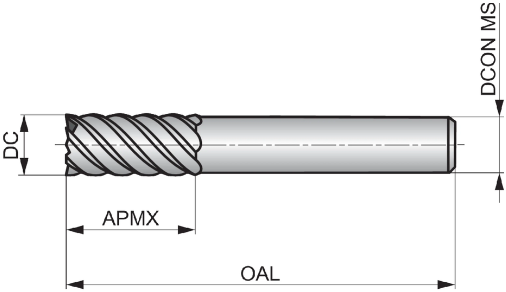

Round tool with cutting diameter 20 mm, maximum depth of cut 38 mm and OAL 104 mm. DCON MS 20 mm with Cylindrical shank DIN 6535 HA. TiAlN coating.

Suitable for M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content).

Cutting Diameter (DC) 20.0mm
Depth Of Cut Maximum (APMX) 38.0mm
Shank Diameter (DCON MS) 20.0mm
Overall Length (OAL) 104.0mm
