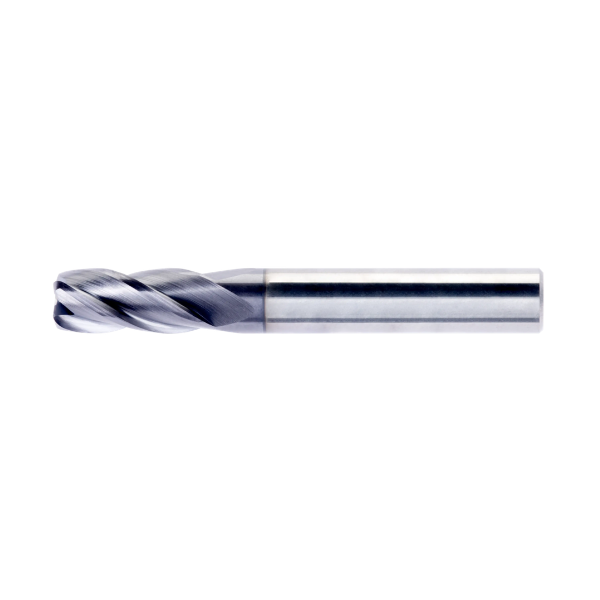

S974 - 16.0mm x r1.0 Dormer 4-Flute Solid Carbide Corner Radius End Mill - TiAlN Coated

S97416.0XR1.0

Dormer Pramet

  • £94.08


S974

Round tool with cutting diameter 16 mm, maximum depth of cut 32 mm and OAL 92 mm. DCON MS 16 mm with Cylindrical shank DIN 6535 HA. TiAlN coating.

Suitable for M - Stainless steel (corrosion resistant steels with ≥ 11% chromium content), P - Steel and cast steel (steels with alloy content ≤ 10% and a hardness of < 45HRC), K - Cast Iron (castings of iron and carbon alloys with > 2% carbon content).

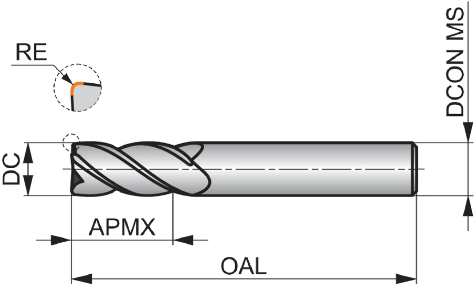

Cutting Diameter (DC) 16.0mm
Corner Radius (RE) 1.0mm
Depth Of Cut Maximum (APMX) 32.0mm
Shank Diameter (DCON MS) 16.0mm
Overall Length (OAL) 92.0mm
