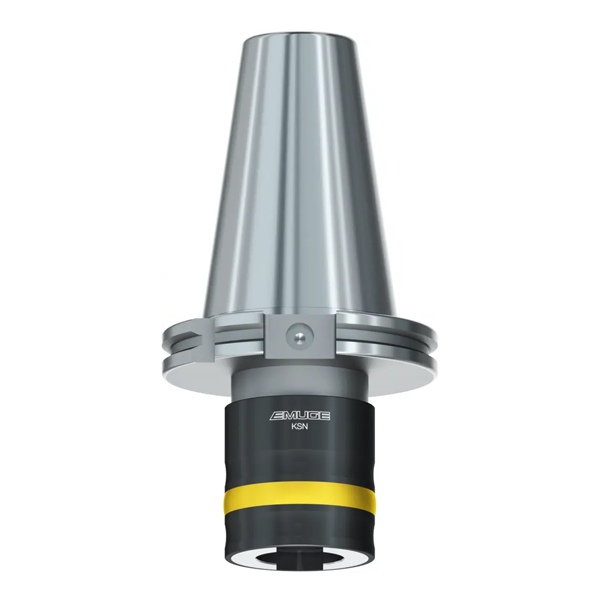

SK50 - KSN 5 (DIN 69871) Quick Change Tap Holder for EM05 Tap Adapters - Emuge
F3305653
SK50 - KSN 5 (DIN 69871) - EM05 (Size 4) - M22-48
KSN quick-change holder for use with threading tools on CNC machining centres and pillar drilling machines.
Product features and benefits:
- For use with all common quick-change adaptors type EM.
- With length compensation in pressure and tension direction to compensate deviations between spindle feed and thread pitch.
- Specially designed pressure point mechanism for reliable begin to cut for tool.
- Tension release to avoid damage due to oversized axial tensile loads.
*Please note these are not available on a guaranteed next day delivery*
| Description | quick-change tap holder |
| Type | KSN |
| Type Size | 5 |
| Shank Standard | DIN 69871 |
| Shank Size (D2) | SK50 |
| Shank Type | A |
| Cutting Area (M) | M22-48 |
| Clamping Area (Ø) | 18-36mm |

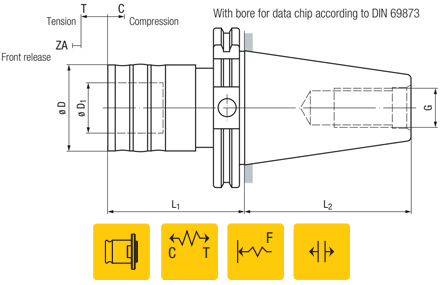

| Outside Diameter (D) | 96mm |
| Projection Length (L1) | 153mm |
| L2 | 101.75mm |
| Overall Length (L1+L2) | 254.75mm |
| D1 | 60mm |
| G | M24 |
| Compression (C) | 16.5mm |
| Tension (T) | 25mm |
| Front Release (ZA) | 5.7mm |
