Softsynchro 0 - 20mm Flatted Shank (2.5mm - 7mm) For ER11 (GB) Collets - Emuge Franken - Precision Engineering Tools EW Equipment Emuge,

Softsynchro 0 - 20mm Flatted Shank (2.5mm - 7mm) For ER11 (GB) Collets - Emuge Franken

F3150G25.1.44

Emuge

  • £507.79

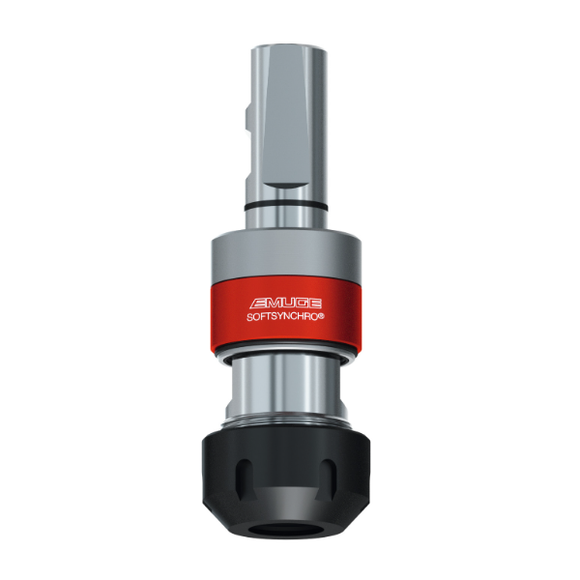

Softsynchro® 0 - 20mm Flatted Shank (For ER11 (GB) Collets)

    Collet holder Softsynchro® for use with threading tools on machines with synchronised spindle.

    Product features and benefits:

    • For use with collets type ER or ER-GB.
    • The minimum length compensation in push and pull direction compensates for minimum pitch differences between synchronous spindle and tool.
    • The minimum length compensation prevents thread miscuts and improves tool life.
    • Can be used up to 50 bar with internal coolant supply (ICS)
    • Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

    Type Softsynchro® 0
    Cutting Area (M) M2-M8
    D1 2.5mm - 7mm
    Collet Size ER11 (GB)
    D2 20mm
    D 34mm
    D3
    16mm
    L1 ER - L1 ER-GB 72.7mm - 71mm
    L2 51mm
    L4 0.9mm
    C 0.5mm
    T 0.5mm
    F3150G25.1.44 SOFTSYNCHRO 0 - 20MM FLATTED SHANK (2.5MM - 7MM) FOR ER11 (GB) COLLETS - EMUGE FRANKEN
