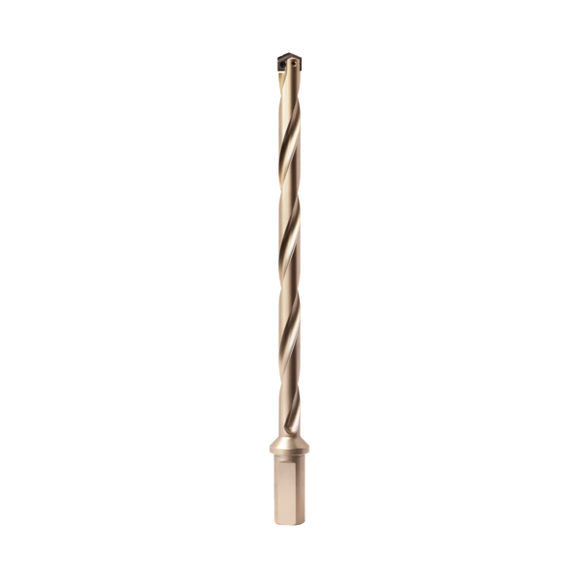

Spade Drill Holder - Straight Shank - Spiral Flute Extended - (13.00mm - 17.65mm) - 80525020FM
80525020FM
Size 0 Spade Drill - Straight Shank - Spiral Flute Extended - 13.00mm - 17.65mm
| DC | 13mm |
| DCX | 17.65mm |
|
LU |
114.3mm |
|
DMM |
20mm |
| OAL | 184.8mm |
| LB | 142.9mm |
| LS | 41.9mm |
| LF | 145.7mm |
| CNT(R) | 1/8" BSP |
| Insert | Series 0 |
