TGAQ D82-3-4Z Parting and Grooving Square Adapter - For TANG-GRIP Inserts - Iscar
3384845 (C)TGAQ D82-3-4Z

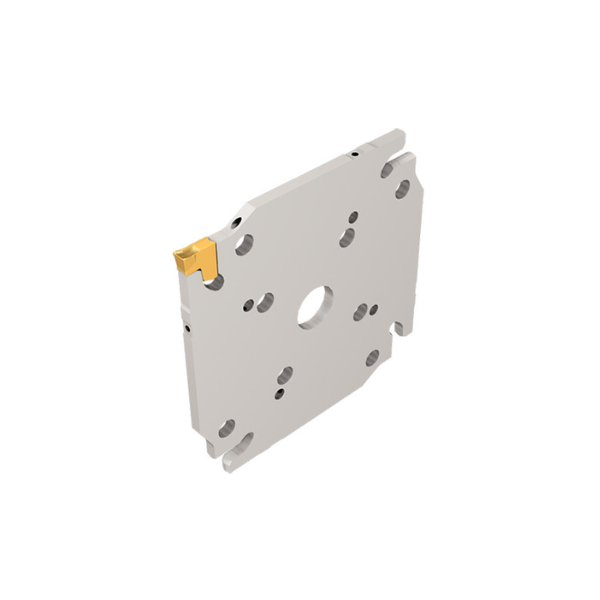

Parting and grooving square adapters carrying TANG-GRIP tangentially clamped inserts
Suitable for all TANG-GRIP inserts D42 and D52 Adapters available with two pockets

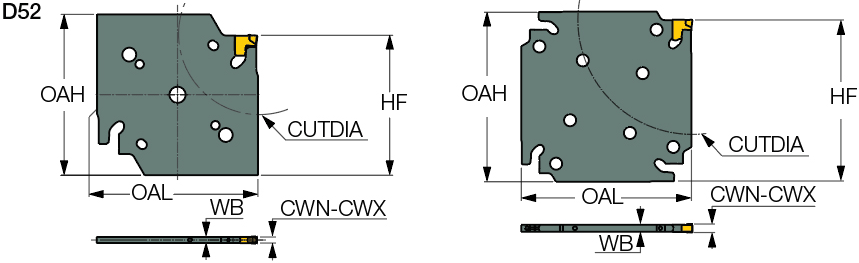

| Body Width (WB) | 2.5mm |
| Cutting Width Min (CWN) | 2.8mm |
| Cutting Width Max (CWX) | 3.5mm |
| Overall Length (OAL) | 61mm |
| Overall Height (OAH) | 61mm |
| Work Piece Parting Diameter Max (CUTDIA) | 82mm |
| Tool Assembly Length (LTA) | 61.3mm |
