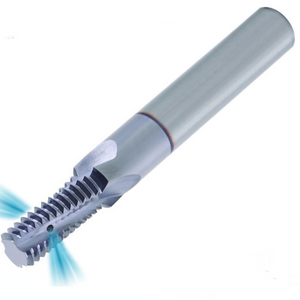

UN 1/2"x13-2xDo - 13TPI Pitch UN Helical Flute Internal Carbide Thread Mill with Radial Coolant - (Helicool R HCR Series - Vardex)
106-00045Thread Milling TM Solid Carbide HeliCool-Radial Cooling IN 13TPI ISO Shank Diameter 12 (mm) Cutting Diameter 10.35 (mm) Tool Overhang 26.4 (mm) VTH Grade
- For Internal Machining
- For UN threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
- Radial Coolant For Through Holes
Thread Standard | UN |
Pitch | 13TPI |
EXT/INT | IN |
Coolant | Yes |
L | 26.4mm |
L1 | 26.4mm |
Le | 26.4mm |
Cutting Dia | 10.35mm |
Z | 4 |
Zt | 13 |
Grade | VTH |
Coating | TiCN |
Description | HCR12104L26-I13UNCTMVTH |
Shank Dia | 12mm |
106-00045 UN 1/2"X13-2XDO - 13TPI PITCH UN HELICAL FLUTE INTERNAL CARBIDE THREAD MILL WITH RADIAL COOLANT - (HELICOOL R HCR SERIES - VARDEX)
