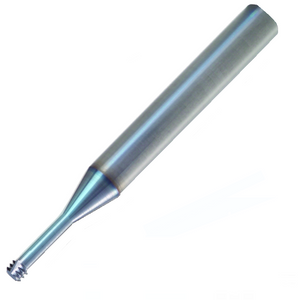

UN 1-64 2xDo - 64 TPI Pitch UN DT3 Miniature Internal Carbide Thread Mill - (MilliPro Series - Vardex)
102-00012Thread Milling TM Solid Carbide MilliPro IN 64 TPI UN Shank Diameter 6 (mm) Cutting Diameter 1.4 (mm) Tool Overhang 4.2 (mm) VTH Grade
- For Internal Machining
- For UN threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
Thread Standard | UN |
Pitch | 64 TPI |
EXT/INT | IN |
Coolant | No |
L | 4.2mm |
L1 | 4.2mm |
Le | 1.19mm |
Cutting Dia | 1.4mm |
Z | 3 |
Zt | 3 |
Grade | VTH |
Coating | TiCN |
Description | D3T06014L042-I64UNTMVTH |
Shank Dia | 6mm |
