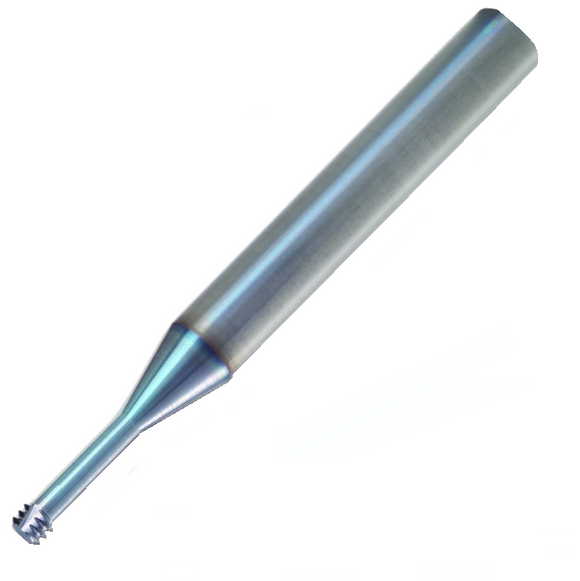

UN 1-72 3xDo - 72 TPI Pitch (3mm Shank) UN DT3 Miniature Internal Carbide Thread Mill - (MilliPro Series - Vardex)
102-00095
Thread Milling TM Solid Carbide MilliPro IN 72 TPI UN Shank Diameter 3 (mm) Cutting Diameter 1.45 (mm) Tool Overhang 5.7 (mm) VTH Grade
- For Internal Machining
- For UN threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
| Thread Standard | UN |
| Pitch | 72 TPI |
| EXT/INT | IN |
| Coolant | No |
| L | 5.7mm |
| L1 | 5.7mm |
| Le | 1.06mm |
| Cutting Dia | 1.45mm |
| Z | 3 |
| Zt | 3 |
| Grade | VTH |
| Coating | TiCN |
| Description | D3T03014L057-I72UNTMVTH |
| Shank Dia | 3mm |
