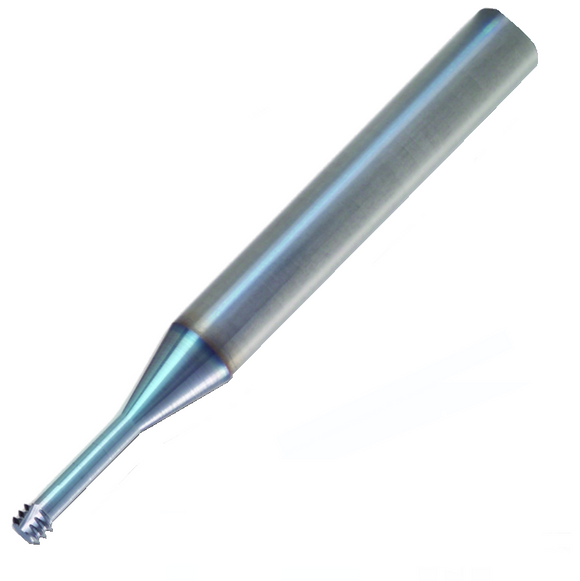

UN 2-56 3xDo - 56 TPI Pitch UN DT3 Miniature Internal Carbide Thread Mill - (MilliPro Series - Vardex)
102-00096Thread Milling TM Solid Carbide MilliPro IN 56 TPI UN Shank Diameter 3 (mm) Cutting Diameter 1.65 (mm) Tool Overhang 7 (mm) VTH Grade
- For Internal Machining
- For UN threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
Thread Standard | UN |
Pitch | 56 TPI |
EXT/INT | IN |
Coolant | No |
L | 7mm |
L1 | 7.0mm |
Le | 1.37mm |
Cutting Dia | 1.65mm |
Z | 3 |
Zt | 3 |
Grade | VTH |
Coating | TiCN |
Description | D3T03016L070-I56UNTMVTH |
Shank Dia | 3mm |
