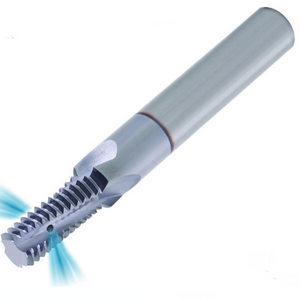

UN 3/8"x16-2xDo - 16TPI Pitch UN Helical Flute Internal Carbide Thread Mill with Radial Coolant - (Helicool R HCR Series - Vardex)
106-00041
Thread Milling TM Solid Carbide HeliCool-Radial Cooling IN 16TPI ISO Shank Diameter 8 (mm) Cutting Diameter 7.65 (mm) Tool Overhang 19.8 (mm) VTH Grade
- For Internal Machining
- For UN threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
- Radial Coolant For Through Holes
| Thread Standard | UN |
| Pitch | 16TPI |
| EXT/INT | IN |
| Coolant | Yes |
| L | 19.8mm |
| L1 | 19.8mm |
| Le | 19.8mm |
| Cutting Dia | 7.65mm |
| Z | 3 |
| Zt | 12 |
| Grade | VTH |
| Coating | TiCN |
| Description | HCR08076L19-I16UNCTMVTH |
| Shank Dia | 8mm |
106-00041 UN 3/8"X16-2XDO - 16TPI PITCH UN HELICAL FLUTE INTERNAL CARBIDE THREAD MILL WITH RADIAL COOLANT - (HELICOOL R HCR SERIES - VARDEX)
