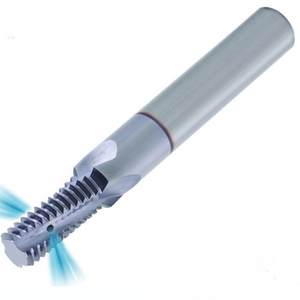

UN 5/8"x11-2xDo - 11TPI Pitch UN Helical Flute Internal Carbide Thread Mill with Radial Coolant - (Helicool R HCR Series - Vardex)
106-00047Thread Milling TM Solid Carbide HeliCool-Radial Cooling IN 11TPI ISO Shank Diameter 14 (mm) Cutting Diameter 13.1 (mm) Tool Overhang 33.5 (mm) VTH Grade
- For Internal Machining
- For UN threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
- Radial Coolant For Through Holes
Thread Standard | UN |
Pitch | 11TPI |
EXT/INT | IN |
Coolant | Yes |
L | 33.5mm |
L1 | 33.5mm |
Le | 33.5mm |
Cutting Dia | 13.1mm |
Z | 4 |
Zt | 14 |
Grade | VTH |
Coating | TiCN |
Description | HCR14131L33-I11UNCTMVTH |
Shank Dia | 14mm |
106-00047 UN 5/8"X11-2XDO - 11TPI PITCH UN HELICAL FLUTE INTERNAL CARBIDE THREAD MILL WITH RADIAL COOLANT - (HELICOOL R HCR SERIES - VARDEX)
