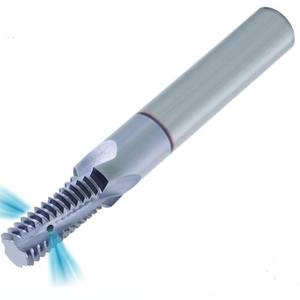

UN 7/16"x14-2xDo - 14TPI Pitch UN Helical Flute Internal Carbide Thread Mill with Radial Coolant - (Helicool R HCR Series - Vardex)
106-00043Thread Milling TM Solid Carbide HeliCool-Radial Cooling IN 14TPI ISO Shank Diameter 10 (mm) Cutting Diameter 9.0 (mm) Tool Overhang 22.7 (mm) VTH Grade
- For Internal Machining
- For UN threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
- Radial Coolant For Through Holes
Thread Standard | UN |
Pitch | 14TPI |
EXT/INT | IN |
Coolant | Yes |
L | 22.7mm |
L1 | 22.7mm |
Le | 22.7mm |
Cutting Dia | 9.0mm |
Z | 3 |
Zt | 12 |
Grade | VTH |
Coating | TiCN |
Description | HCR10090L22-I14UNCTMVTH |
Shank Dia | 10mm |
106-00043 UN 7/16"X14-2XDO - 14TPI PITCH UN HELICAL FLUTE INTERNAL CARBIDE THREAD MILL WITH RADIAL COOLANT - (HELICOOL R HCR SERIES - VARDEX)
