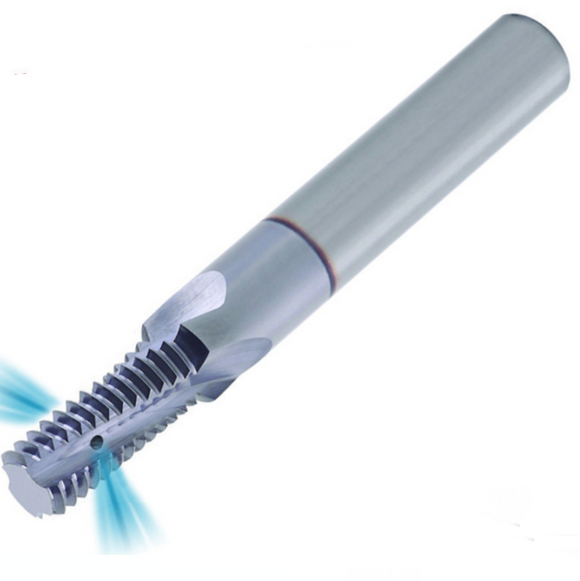

UN 9/16"x12-2xDo - 12TPI Pitch UN Helical Flute Internal Carbide Thread Mill with Radial Coolant - (Helicool R HCR Series - Vardex)
106-00046Thread Milling TM Solid Carbide HeliCool-Radial Cooling IN 12TPI ISO Shank Diameter 12 (mm) Cutting Diameter 11.8 (mm) Tool Overhang 28.6 (mm) VTH Grade
- For Internal Machining
- For UN threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
- Radial Coolant For Through Holes
Thread Standard | UN |
Pitch | 12TPI |
EXT/INT | IN |
Coolant | Yes |
L | 28.6mm |
L1 | 28.6mm |
Le | 28.6mm |
Cutting Dia | 11.8mm |
Z | 4 |
Zt | 13 |
Grade | VTH |
Coating | TiCN |
Description | HCR12118L28-I12UNCTMVTH |
Shank Dia | 12mm |
