UNF 1/2"x20- 2xDo - 20 TPI Pitch Helical Flute Internal Carbide Thread Mill with Axial Coolant - (Helicool Series - Vardex) - Precision Engineering Tools EW Equipment

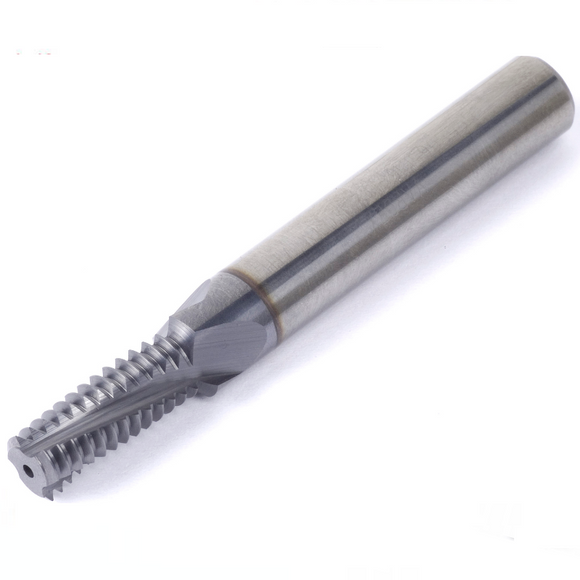

UNF 1/2"x20- 2xDo - 20 TPI Pitch Helical Flute Internal Carbide Thread Mill with Axial Coolant - (Helicool Series - Vardex)

104-00071

EW Equipment

  • £203.00

Only 5 left!

Thread Milling TM Solid Carbide HeliCool IN 20 TPI UN Shank Diameter 12 (mm) Cutting Diameter 11.1 (mm) Tool Overhang 26.04 (mm) VTH Grade

  • For Internal Machining
  • For UN threads
  • Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
  • Made from Micro grain Solid Carbide
  • TiCN coating for longer tool life
  • Axial coolant for blind holes

Thread Standard UN
Pitch 20TPI
EXT/INT IN
Coolant Yes
L 26.04mm
L1 26.04mm
Le 26.04mm
Cutting Dia 11.1mm
Z 4
Zt 20
Grade VTH
Coating TiCN
Description HC12111L26-I20UNFTMVTH
Shank Dia 12mm
