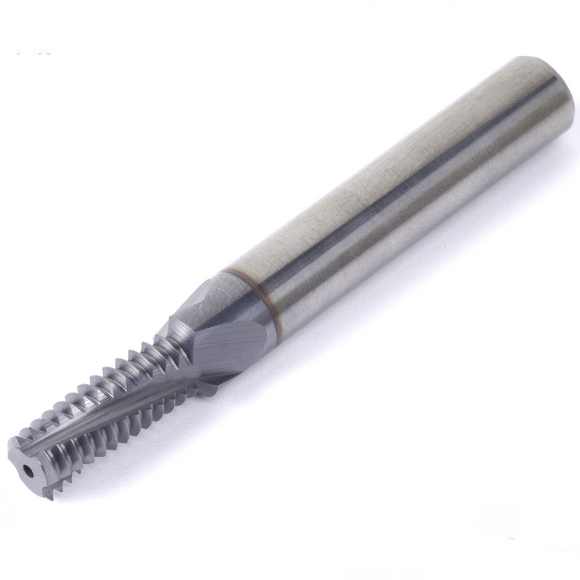

UNF 1/4"x28- 2xDo - 28 TPI Pitch Helical Flute Internal Carbide Thread Mill with Axial Coolant - (Helicool Series - Vardex)
104-00279
Thread Milling TM Solid Carbide HeliCool IN 28 TPI UN Shank Diameter 6 (mm) Cutting Diameter 5.15 (mm) Tool Overhang 13.15 (mm) VTH Grade
- For Internal Machining
- For UN threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
- Axial coolant for blind holes
| Thread Standard | UN |
| Pitch | 28TPI |
| EXT/INT | IN |
| Coolant | Yes |
| L | 13.15mm |
| L1 | 13.15mm |
| Le | 13.15mm |
| Cutting Dia | 5.15mm |
| Z | 3 |
| Zt | 14 |
| Grade | VTH |
| Coating | TiCN |
| Description | HC06052L13-I28UNFTMVTH |
| Shank Dia | 6mm |
104-00279 UNF 1/4"X28- 2XDO - 28 TPI PITCH HELICAL FLUTE INTERNAL CARBIDE THREAD MILL WITH AXIAL COOLANT - (HELICOOL SERIES - VARDEX)
