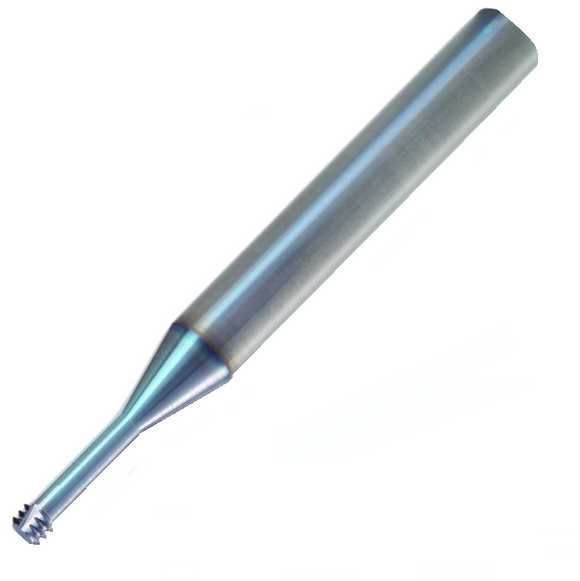

UNJ 5/16"x18 2xDo - 18 TPI Pitch UNJ D3T Miniature Internal Carbide Thread Mill - (MilliPro Series - Vardex)
102-00089
Thread Milling TM Solid Carbide MilliPro IN 18 TPI UNJ Shank Diameter 8 (mm) Cutting Diameter 6.4 (mm) Tool Overhang 24.1 (mm) VTH Grade
- For Internal Machining
- For UNJ threads
- Ideal for Steel, Stainless Steel, HRSA's, Cast Iron & Non-Ferrous
- Made from Micro grain Solid Carbide
- TiCN coating for longer tool life
| Thread Standard | UNJ |
| Pitch | 18 TPI |
| EXT/INT | IN |
| Coolant | No |
| L | 24.1mm |
| L1 | 24.1mm |
| Le | 4.24mm |
| Cutting Dia | 6.4mm |
| Z | 3 |
| Zt | 3 |
| Grade | VTH |
| Coating | TiCN |
| Description | D3T08064L241-I18UNJTMVTH |
| Shank Dia | 8mm |
