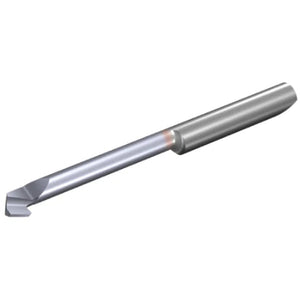

Vargus Microscope Back Boring Insert - M552BBR15L30RVBX - 5.2mm Min Bore Dia - 30mm Reach - Rad 0.15r (5mm Shank)
063-00165
M552BBR15L30RVBX
Microscope Back Boring Insert.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | M552BBR15L30RVBX |
| Shank Dia d(mm) |
5.0 |
| Min Bore Dia D min. (mm) |
5.2 |
| L1 | 30 |
| Rad | 0.15 |
| F | 2.45 |
| S max | 1.0 |
| a | 4.95 |
| b | 3.8 |
| α° | 30 |
| β° | 7 |
| L2 ref* | 29.85 |
| L3 | 2.30 |
| L ref | 55 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | RH |
