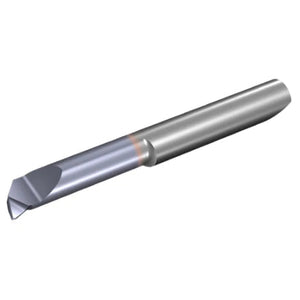

Vargus Microscope Boring 20° Insert - MC432B20R15L16RVBX - 3.2mm Min Bore Dia - 16mm Reach - Rad 0.15r (4mm Shank)
063-00179
MC432B20R15L16RVBX
Microscope Boring 20° Insert.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | MC432B20R15L16RVBX |
| Shank Dia d(mm) |
4.0 |
| Min Bore Dia D min. (mm) |
3.2 |
| L1 | 16 |
| Rad | 0.15 |
| F | 1.45 |
| S max | 0.2 |
| a | 2.95 |
| b | 2.55 |
| α° | 20 |
| β° | 20 |
| L2 ref* | 18.2 |
| L ref | 35.2 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | RH |
