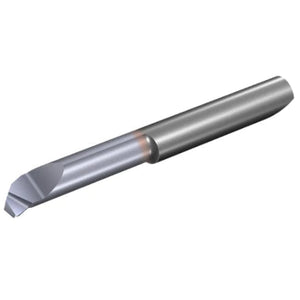

Vargus Microscope Boring 90° Insert - M552B90R20L21RVBX - 5.2mm Min Bore Dia - 21mm Reach - Rad 0.2r (5mm Shank)
063-00130
M552B90R20L21RVBX
Microscope Boring 90° Insert.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | M552B90R20L21RVBX |
| Shank Dia d(mm) |
5.0 |
| Min Bore Dia D min. (mm) |
5.2 |
| L1 | 21 |
| Rad | 0.2 |
| F | 2.44 |
| S max | 0.5 |
| a | 4.94 |
| b | 4.2 |
| α° | 20 |
| β° | 0 |
| L2 ref* | 23.15 |
| L ref | 46 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | RH |
