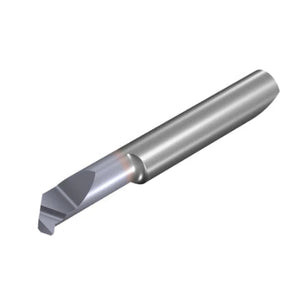

Vargus Microscope Boring and Profiling Insert - M552CLR20L16RVBX - 5.2mm Min Bore Dia - 16mm Reach - Rad 0.2r (5mm Shank)
063-00014
M552CLR20L16RVBX
Microscope Boring & Profiling Insert.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | M552CLR20L16RVBX |
| Shank Dia d(mm) |
5.0 |
| Min Bore Dia D min. (mm) |
5.2 |
| L1 | 16 |
| Rad | 0.2 |
| F | 2.4 |
| S max | 0.95 |
| a | 4.9 |
| b | 3.8 |
| α° | 49 |
| β° | 3 |
| L2 ref* | 18.15 |
| L ref | 41 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | RH |
