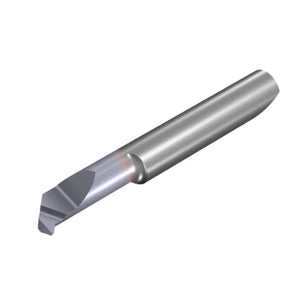

Vargus Microscope Boring and Profiling Insert - MS442CLR15L21RVBX - 4.2mm Min Bore Dia - 21mm Reach - Rad 0.15r (4mm Shank)
063-00248
MS442CLR15L21RVBX
Microscope Boring & Profiling Insert.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | MS442CLR15L21RVBX |
| Shank Dia d(mm) |
4.0 |
| Min Bore Dia D min. (mm) |
4.2 |
| L1 | 21 |
| Rad | 0.15 |
| F | 1.9 |
| S max | 0.7 |
| a | 3.9 |
| b | 3.1 |
| α° | 47 |
| β° | 3 |
| L2 ref* | 22.8 |
| L ref | 39.8 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | RH |
