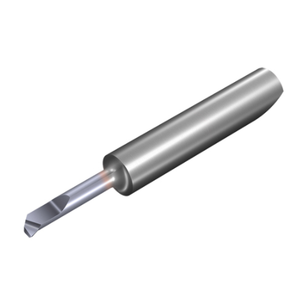

Vargus Microscope Boring Insert - MC410BCR10L06RVBX - 1.0mm Min Bore Dia - 6mm Reach - Rad 0.1r (4mm Shank)
063-00194
MC410BCR10L06RVBX
Microscope Boring Insert.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | MC410BCR10L06RVBX |
| Shank Dia d(mm) |
4.0 |
| Min Bore Dia D min. (mm) |
1.0 |
| L1 | 6.0 |
| Rad | 0.1 |
| F | 0.48 |
| S max | 0.15 |
| a | 0.96 |
| b | 0.81 |
| α° | 17 |
| β° | 8 |
| L2 ref* | 8.8 |
| L ref | 25.75 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | RH |
