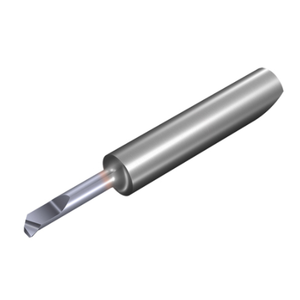

Vargus Microscope Boring Insert - MC417BCR05L06RVBX - 1.7mm Min Bore Dia - 6mm Reach - Rad 0.05r (4mm Shank)
063-00224
MC417BCR05L06RVBX
Microscope Boring Insert.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | MC417BCR05L06RVBX |
| Shank Dia d(mm) |
4.0 |
| Min Bore Dia D min. (mm) |
1.7 |
| L1 | 6.0 |
| Rad | 0.05 |
| F | 0.62 |
| S max | 0.2 |
| a | 1.43 |
| b | 1.02 |
| α° | 16 |
| β° | 8 |
| L2 ref* | 11.5 |
| L ref | 28.5 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | RH |
