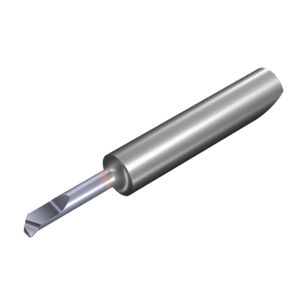

Vargus Microscope Boring Insert - MC432BCR15L20RVBX - 3.2mm Min Bore Dia - 20mm Reach - Rad 0.15r (4mm Shank)
063-00220
MC432BCR15L20RVBX
Microscope Boring Insert.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | MC432BCR15L20RVBX |
| Shank Dia d(mm) |
4.0 |
| Min Bore Dia D min. (mm) |
3.2 |
| L1 | 20.0 |
| Rad | 0.15 |
| F | 1.4 |
| S max | 0.2 |
| a | 2.87 |
| b | 2.45 |
| α° | 17.5 |
| β° | 8 |
| L2 ref* | 22.8 |
| L ref | 39.8 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | RH |
