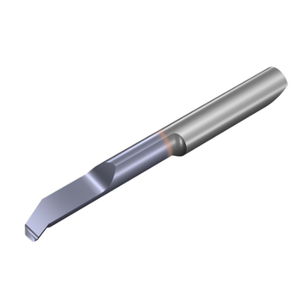

Vargus Microscope Boring Insert With Chip Breaker - M772BCBR20L45RVBX - 7.2mm Min Bore Dia - 45mm Reach - Rad 0.2r (7mm Shank)
063-00296
M772BCBR20L45RVBX
Microscope Boring Insert With Chip Breaker.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | M772BCBR20L45RVBX |
| Shank Dia d(mm) |
7.0 |
| Min Bore Dia D min. (mm) |
7.2 |
| L1 | 45 |
| Rad | 0.2 |
| F | 3.44 |
| S max | 0.5 |
| a | 6.94 |
| b | 5.74 |
| α° | 22 |
| β° | 8 |
| L2 ref* | 46.4 |
| L ref | 71 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | RH |
