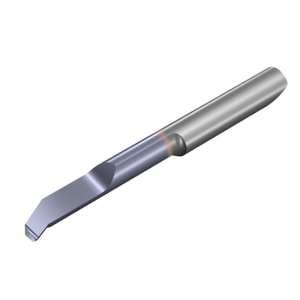

Vargus Microscope Boring Insert With Chip Breaker - MC427BCBR05L15RVBX - 2.7mm Min Bore Dia - 15mm Reach - Rad 0.05r (4mm Shank)
063-00280
MC427BCBR05L15RVBX
Microscope Boring Insert With Chip Breaker.
Features and Benefits:
-
Better chip evacuation for secure machining.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | MC427BCBR05L15RVBX |
| Shank Dia d(mm) |
4.0 |
| Min Bore Dia D min. (mm) |
2.7 |
| L1 | 15 |
| Rad | 0.05 |
| F | 1.22 |
| S max | 0.2 |
| a | 2.47 |
| b | 2.06 |
| α° | 18 |
| β° | 8 |
| L2 ref* | 18.2 |
| L ref | 35.2 |
| Grade | VBX |
| EXT/INT | INT |
| R/L Hand | RH |
