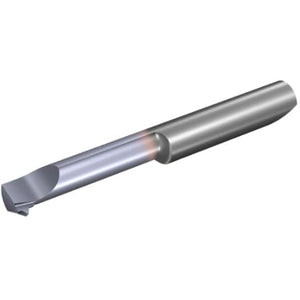

Vargus Microscope Threading Insert ISO Metric - M549TH1.00ISOL16RVBX - 1.00mm Pitch - 5.8mm Min Bore Dia (5mm Shank)
031-00030
M549TH1.00ISOL16RVBX
Microscope Threading Insert - ISO Metric.
Features and Benefits:
-
No Chipbreaker.
-
Longer tool life.
- Tolerance Class: 6g/6H
View the full Vargus Microscope Catalogue HERE.
| Description | M549TH1.00ISOL16RVBX |
| Thread | M7x1.0 |
| Shank Dia d(mm) |
5.0 |
| Min Bore Dia D min. (mm) |
5.8 |
| Pitch (mm) |
1.00 |
| Helix° | 3.5 |
| L1 | 16 |
| F | 2.4 |
| Y | 0.7 |
| h (min) | 0.58 |
| L2 ref* | 18.35 |
| L ref | 41.2 |
| Insert Size (IC) | 5.0 |
| Grade | VBX |
| Coating | TiCN |
| EXT/INT | INT |
| R/L Hand | RH |
