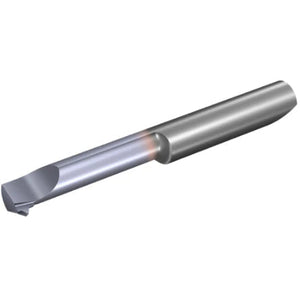

Vargus Microscope Threading Insert Partial Profile 55° - MS439THF55L16RVBX - 0.5-1.0mm 28-27TPI Pitch - 4.2mm Min Bore Dia (4mm Shank)
031-00058
MS439THF55L16RVBX
Microscope Threading Insert - Partial Profile 55°.
Features and Benefits:
-
No Chipbreaker.
-
Longer tool life.
View the full Vargus Microscope Catalogue HERE.
| Description | MS439THF55L16RVBX |
| Shank Dia d(mm) |
4.0 |
| Min Bore Dia D min. (mm) |
4.2 |
| Pitch (mm) |
0.5-1.0 |
| Pitch (TPI) | 28-27 |
| Helix° | 3.5 |
| L1 | 16 |
| F | 1.9 |
| Y | 0.75 |
| L2 ref* | 18.4 |
| L ref | 35.4 |
| Insert Size (IC) | 4.0 |
| Grade | VBX |
| Coating | TiCN |
| EXT/INT | INT |
| R/L Hand | RH |
