VDI 30 Radial Driven Tooling ER25 Collet Chuck (Shifted) Type B to Suit Okuma Coupling - 25mm Gauge - Eroglu
O1RK30E25B070C63
Okuma - VDI 30 - ER25 (2-16) - Type B - 25mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

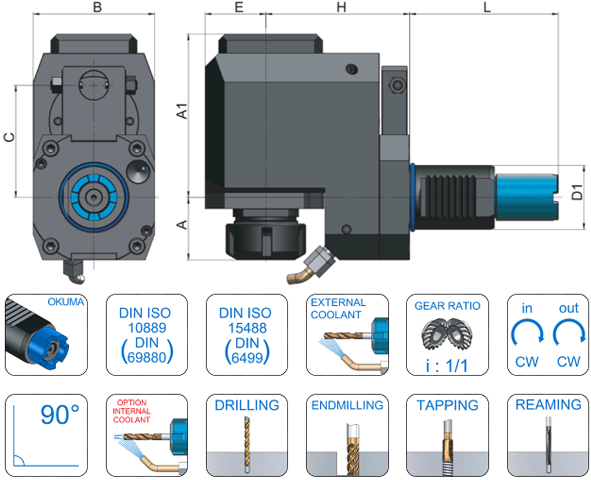

| Coupling | Okuma |
| VDI (D1) | 30 |
| Capacity | ER25 (2-16) |
| A (Gauge) | 25mm |
| A1 | 84mm |
| E | 26mm |
| H | 70mm |
| L | 69mm |
| B | 64mm |
| C | 63mm |
| N.Max (1/min) | 6000 |
| T.Max. (Nm) | 40 |
O1RK30E25B070C63
VDI 30 RADIAL DRIVEN TOOLING ER25 COLLET CHUCK (SHIFTED) TYPE B TO SUIT OKUMA COUPLING - 25MM GAUGE - EROGLU
