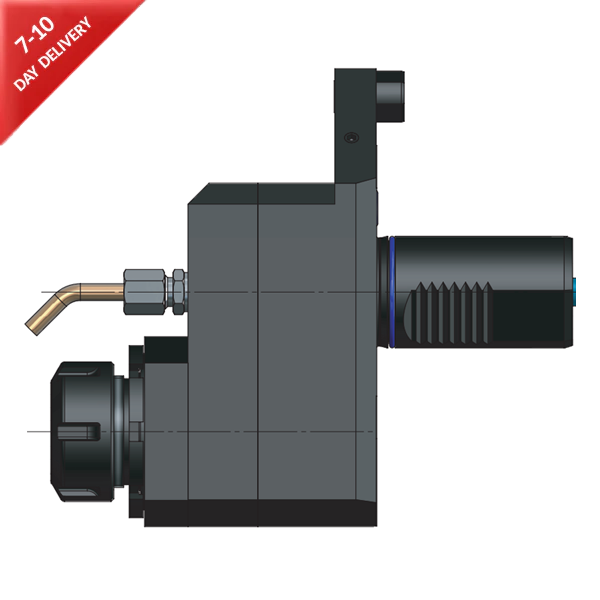

VDI 40 Axial Driven Tooling ER25 Collet Chuck (Shifted) to Suit Mazak Nexus 100 MY Coupling - 105mm Gauge - Eroglu
MZ3AK40E25105C68
Mazak Nexus 100 MY - VDI 40 - ER25 (2-16) - 105mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

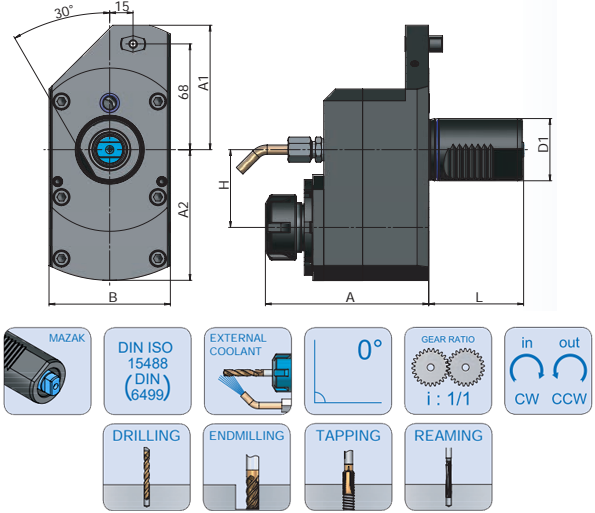

| Coupling | Mazak Nexus 100 MY |
| VDI (D1) | 40 |
| Capacity | ER25 (2-16) |
| A (Gauge) | 105mm |
| A1 | 80mm |
| A2 | 84mm |
| H | 50mm |
| L | 61mm |
| B | 78mm |
| K | 8mm |
| S | 10mm |
| N.Max (1/min) | 6000 |
| T.Max. (Nm) | 70 |
MZ3AK40E25105C68
VDI 40 AXIAL DRIVEN TOOLING ER25 COLLET CHUCK (SHIFTED) TO SUIT MAZAK NEXUS 100 MY COUPLING - 105MM GAUGE - EROGLU
