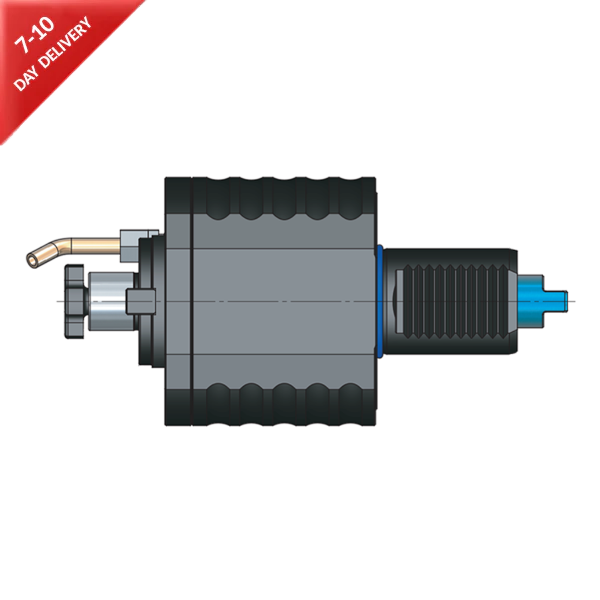

VDI 40 Axial Driven Tooling 16mm Face Mill Arbor to Suit Duplomatic DIN 1809 Coupling - 90mm Gauge - Eroglu
09AX40K16090
Duplomatic DIN 1809 - VDI 40 - 16mm - 90mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

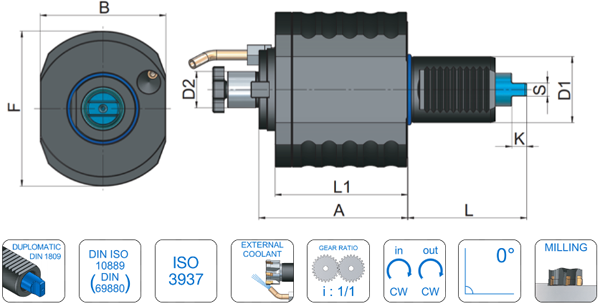

| Coupling | Duplomatic DIN 1809 |
| VDI (D1) | 40 |
| D2 | 16mm |
| A (Gauge) | 90mm |
| L | 72mm |
| L1 | 76mm |
| B | 76mm |
| F | 94mm |
| K | 9mm |
| S | 8mm |
| N.Max (1/min) | 6000 |
| T.Max. (Nm) | 50 |
09AX40K16090
VDI 40 AXIAL DRIVEN TOOLING 16MM FACE MILL ARBOR TO SUIT DUPLOMATIC DIN 1809 COUPLING - 90MM GAUGE - EROGLU
