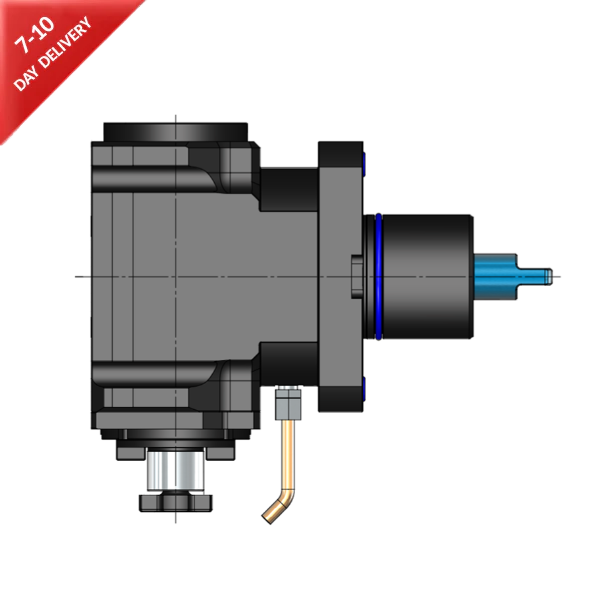

VDI 40 Radial Driven Tooling 22mm Face Mill Arbor to Suit Mori Seiki BMT40 Coupling - 90mm Gauge - Eroglu
MSRA40K22AB085
Mori Seiki BMT40 - VDI 40 - 22mm - 90mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

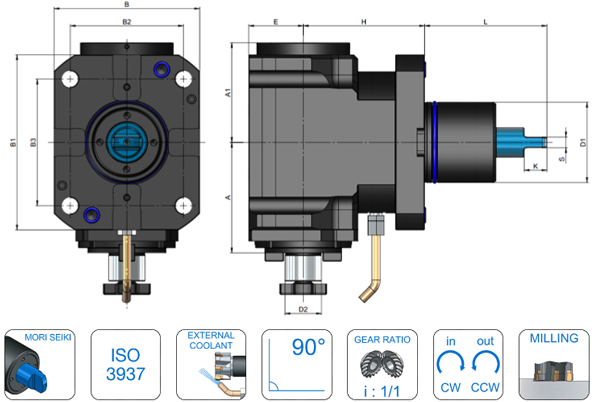

| Coupling | Mori Seiki BMT40 |
| VDI (D1) | 40 |
| D2 | 22mm |
| A (Gauge) | 90mm |
| A1 | 55mm |
| E | 38mm |
| H | 85mm |
| L | 69mm |
| B | 82mm |
| B1 | 110mm |
| B2 | 62mm |
| B3 | 70mm |
| K | 14mm |
| S | 8mm |
| N.Max (1/min) | 6000 |
| T.Max. (Nm) | 40 |
MSRA40K22AB085
VDI 40 RADIAL DRIVEN TOOLING 22MM FACE MILL ARBOR TO SUIT MORI SEIKI BMT40 COUPLING - 90MM GAUGE - EROGLU
