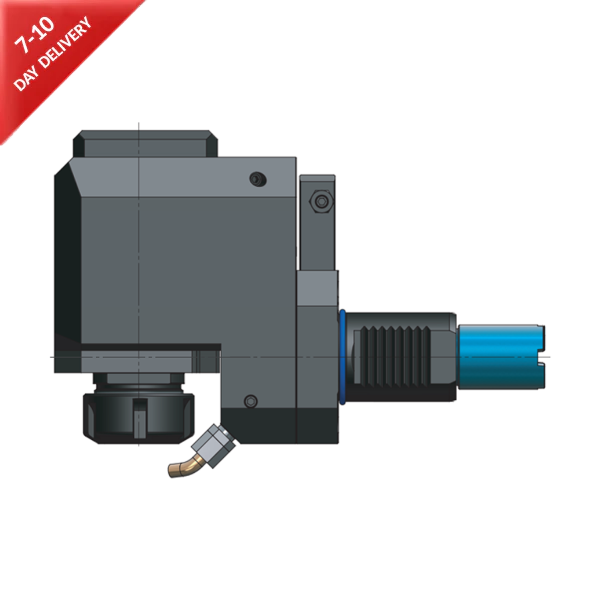

VDI 40 Radial Driven Tooling ER32 Collet Chuck (Shifted) Type B to Suit Okuma Coupling - L=93mm, 35mm Gauge - Eroglu
O2RK40E32B090C70
Okuma - VDI 40 - ER32 (2-20) - Type B - 35mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

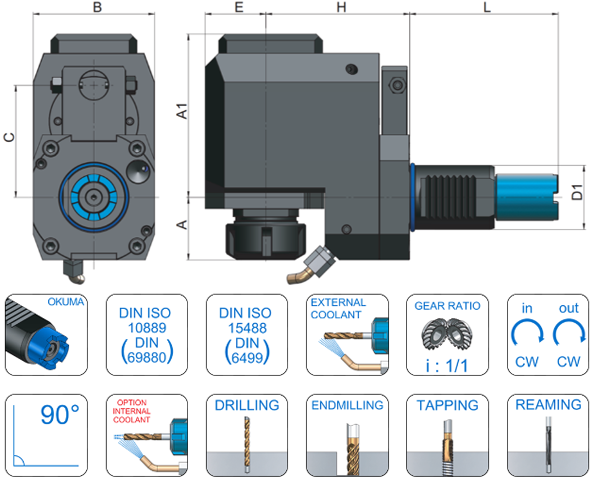

| Coupling | Okuma |
| VDI (D1) | 40 |
| Capacity | ER32 (2-20) |
| A (Gauge) | 35mm |
| A1 | 99.5mm |
| E | 38mm |
| H | 90mm |
| L | 93mm |
| B | 76mm |
| C | 70mm |
| N.Max (1/min) | 4000 |
| T.Max. (Nm) | 70 |
O2RK40E32B090C70
VDI 40 RADIAL DRIVEN TOOLING ER32 COLLET CHUCK (SHIFTED) TYPE B TO SUIT OKUMA COUPLING - L=93MM, 35MM GAUGE - EROGLU
