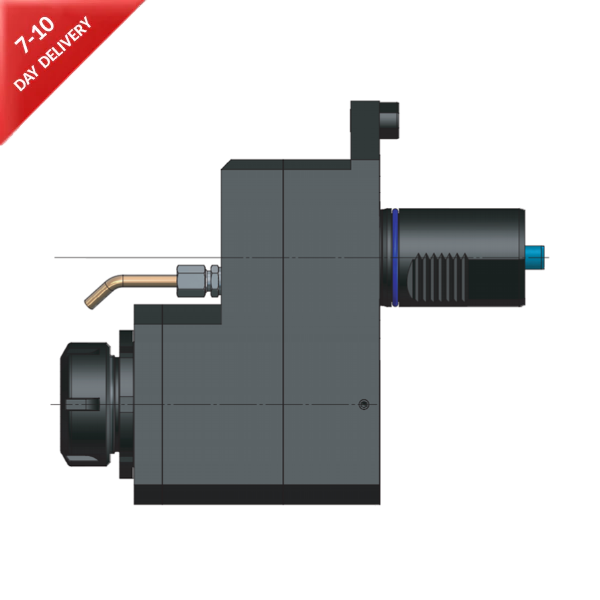

VDI 50 Axial Driven Tooling ER40 Collet Chuck (Shifted) to Suit Mazak Nexus 300-350 Coupling - 165mm Gauge - Eroglu
MZ2AK50E40165C70
Mazak Nexus 300-350 - VDI 50 - ER40 (3-26) - 165mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

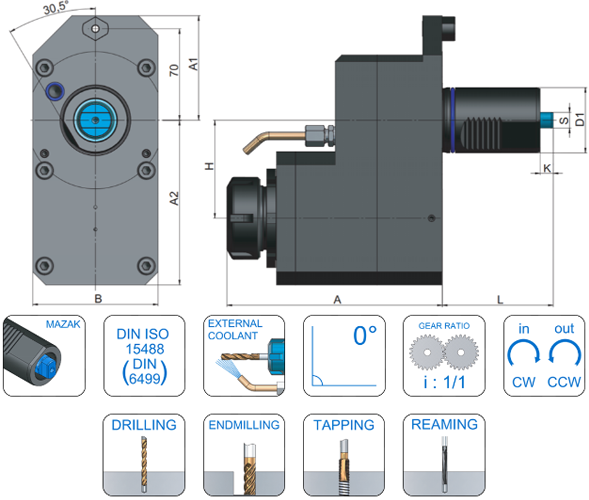

| Coupling | Mazak Nexus 300-350 |
| VDI (D1) | 50 |
| Capacity | ER40 (3-26) |
| A (Gauge) | 165mm |
| A1 | 80mm |
| A2 | 126mm |
| H | 75mm |
| L | 85mm |
| B | 96mm |
| K | 10mm |
| S | 12mm |
| N.Max (1/min) | 4000 |
| T.Max. (Nm) | 100 |
MZ2AK50E40165C70
VDI 50 AXIAL DRIVEN TOOLING ER40 COLLET CHUCK (SHIFTED) TO SUIT MAZAK NEXUS 300-350 COUPLING - 165MM GAUGE - EROGLU
