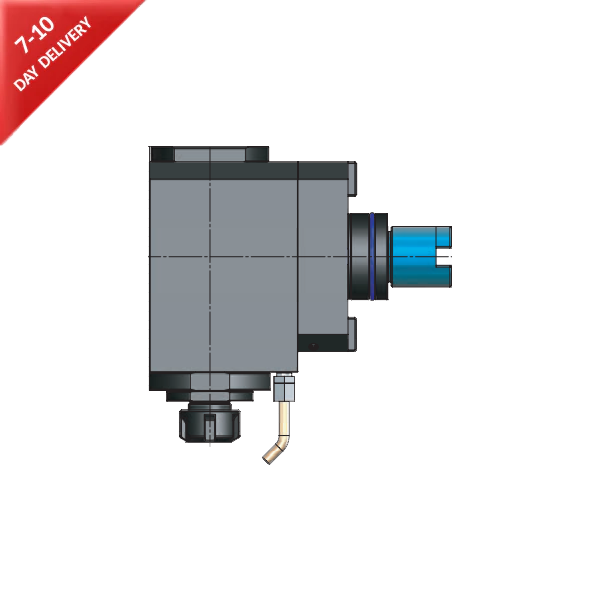

VDI 50 Radial Driven Tooling ER20 Collet Chuck to Suit Takisawa TC 250 Coupling - 160mm Gauge - Eroglu
TS3RA50E20AB080
Takisawa TC 250 - VDI 50 - ER20 (2-13) - 160mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

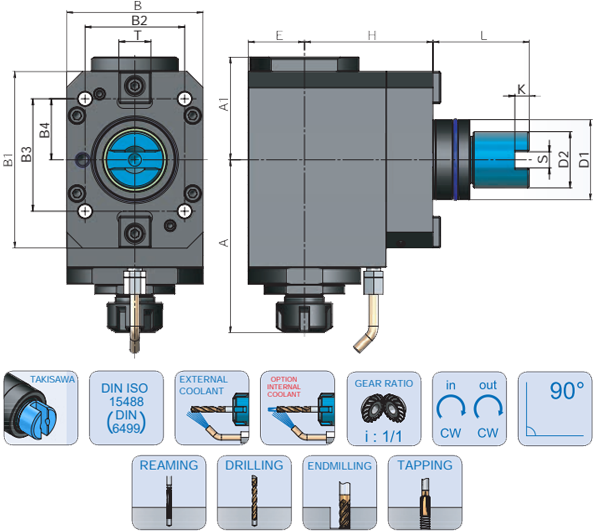

| Coupling | Takisawa TC 250 |
| VDI (D1) | 50 |
| Capacity | ER20 (2-13) |
| D2 | 35mm |
| A (Gauge) | 160mm |
| A1 | 64mm |
| E | 35mm |
| H | 80mm |
| L | 60mm |
| T | 20mm |
| B | 85mm |
| B1 | 110mm |
| B2 | 62mm |
| B3 | 70mm |
| B4 | 38mm |
| K | 9mm |
| S | 10mm |
| N.Max (1/min) | 6000 |
| T.Max. (Nm) | 50 |
TS3RA50E20AB080
VDI 50 RADIAL DRIVEN TOOLING ER20 COLLET CHUCK TO SUIT TAKISAWA TC 250 COUPLING - 160MM GAUGE - EROGLU
