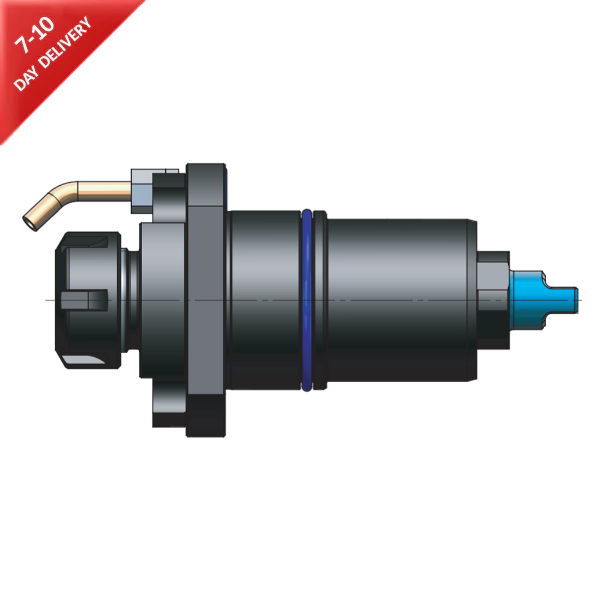

VDI 55 Axial Driven Tooling ER25 Collet Chuck to Suit Nakamura Coupling - 51mm Gauge - Eroglu
NKAX55E25051
Nakamura - VDI 55 - ER25 (2-16) - 51mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

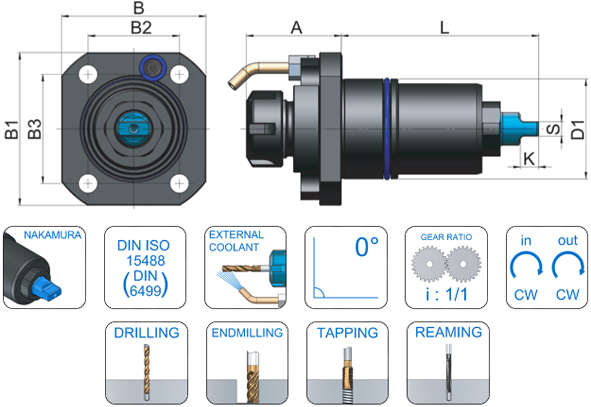

| Coupling | Nakamura |
| VDI (D1) | 55 |
| Capacity | ER25 (2-16) |
| A (Gauge) | 51mm |
| L | 108mm |
| B | 79mm |
| B1 | 82mm |
| B2 | 50mm |
| B3 | 60mm |
| K | 10mm |
| S | 8mm |
| N.Max (1/min) | 6000 |
| T.Max. (Nm) | 50 |
NKAX55E25051
VDI 55 AXIAL DRIVEN TOOLING ER25 COLLET CHUCK TO SUIT NAKAMURA COUPLING - 51MM GAUGE - EROGLU
