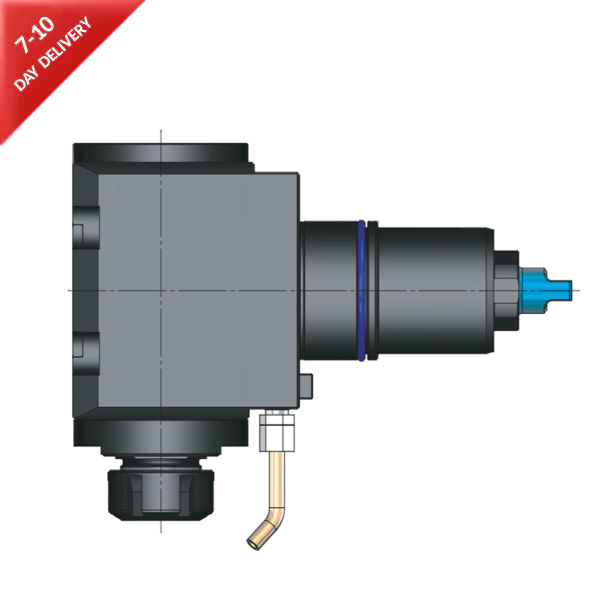

VDI 55 Radial Driven Tooling ER25 Collet Chuck to Suit Nakamura Coupling - 90mm Gauge - Eroglu
NKRA55E25AB055
Nakamura - VDI 55 - ER25 (2-16) - 90mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

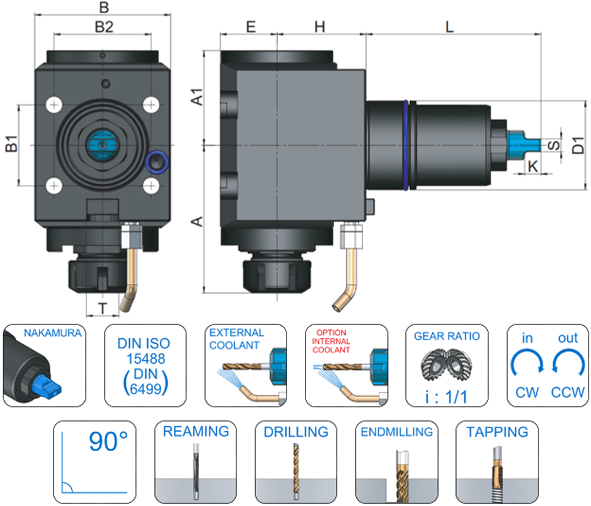

| Coupling | Nakamura |
| VDI (D1) | 55 |
| Capacity | ER25 (2-16) |
| A (Gauge) | 90mm |
| A1 | 58.5mm |
| E | 35mm |
| H | 55mm |
| L | 108mm |
| T | 20mm |
| B | 84mm |
| B1 | 65mm |
| B2 | 80mm |
| K | 10mm |
| S | 8mm |
| N.Max (1/min) | 6000 |
| T.Max. (Nm) | 50 |
NKRA55E25AB055
VDI 55 RADIAL DRIVEN TOOLING ER25 COLLET CHUCK TO SUIT NAKAMURA COUPLING - 90MM GAUGE - EROGLU
