VDI 55 Radial Driven Tooling ER32 Collet Chuck to Suit Takisawa TY 2000 Coupling - 100mm Gauge - Eroglu
TS4RA55E32AB90
Takisawa TY 2000 - VDI 55 - ER32 (2-20) - 100mm Gauge

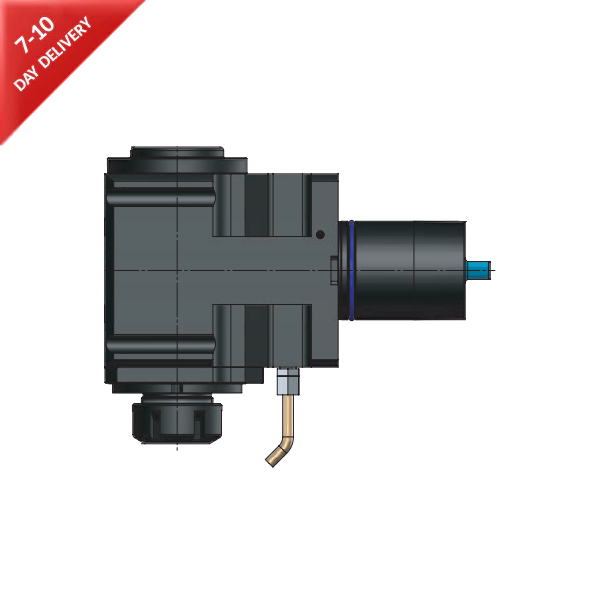

This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

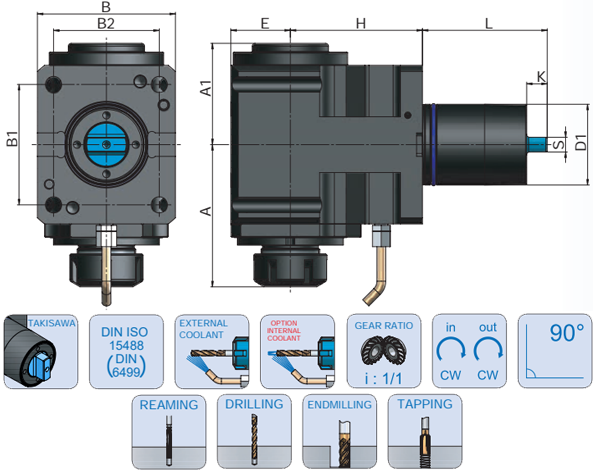

| Coupling | Takisawa TY 2000 |
| VDI (D1) | 55 |
| Capacity | ER32 (2-20) |
| A (Gauge) | 100mm |
| A1 | 69mm |
| E | 40.5mm |
| H | 90mm |
| L | 85mm |
| B | 94mm |
| B1 | 72mm |
| B2 | 82mm |
| K | 14mm |
| S | 10mm |
| N.Max (1/min) | 6000 |
| T.Max. (Nm) | 70 |
