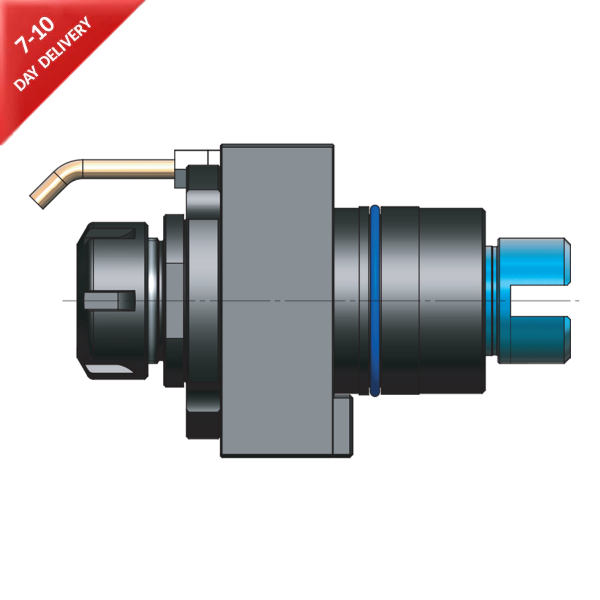

VDI 60 Axial Driven Tooling ER32 Collet Chuck to Suit Takisawa EX Coupling - 80mm Gauge - Eroglu
TS1AX60E32080
Takisawa EX - VDI 60 - ER32 (2-20) - 80mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

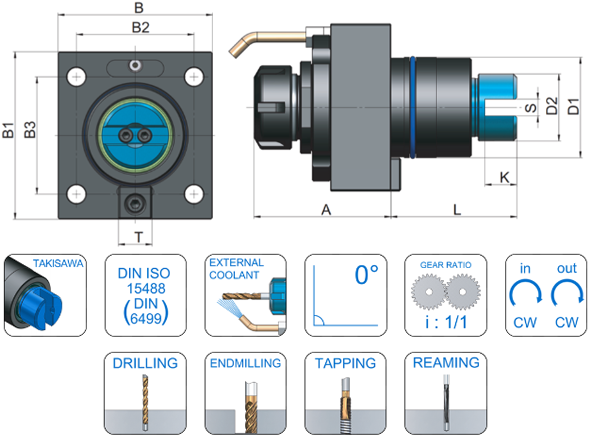

| Coupling | Takisawa EX 308 / 310 / 508 / 510 |
| VDI (D1) | 60 |
| Capacity | ER32 (2-20) |
| D2 | 40mm |
| A (Gauge) | 80mm |
| L | 75mm |
| T | 20mm |
| B | 92mm |
| B1 | 100mm |
| B2 | 70mm |
| B3 | 70mm |
| K | 19mm |
| S | 10mm |
| N.Max (1/min) | 6000 |
| T.Max. (Nm) | 50 |
TS1AX60E32080
VDI 60 AXIAL DRIVEN TOOLING ER32 COLLET CHUCK TO SUIT TAKISAWA EX COUPLING - 80MM GAUGE - EROGLU
