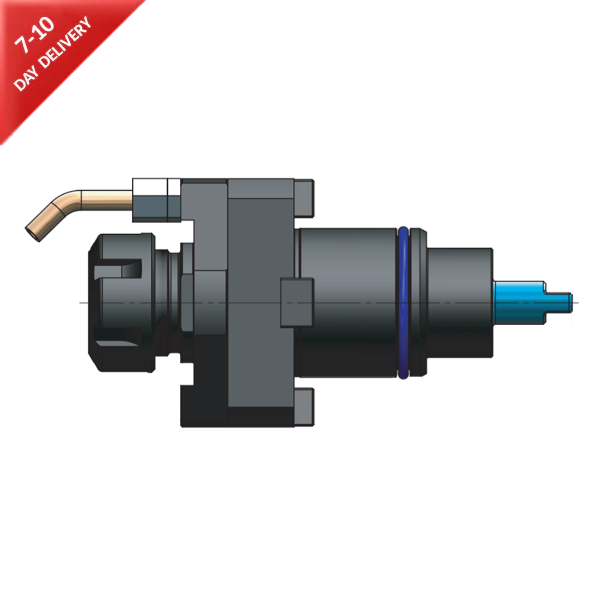

VDI 65 Axial Driven Tooling ER32 Collet Chuck to Suit BMT 65 Coupling - 85mm Gauge - Eroglu
BMTAX65E32085
BMT 65 - VDI 65 - ER32 (2-20) - 85mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

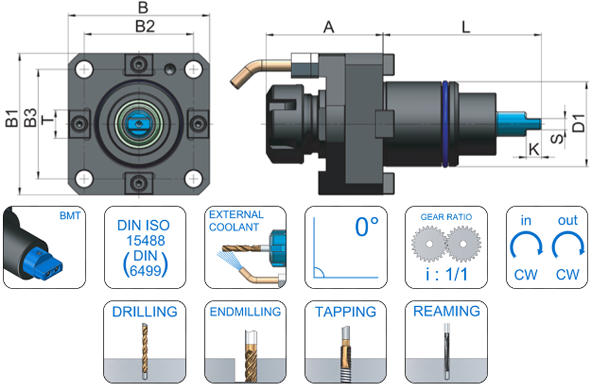

| Coupling | BMT 65 |
| VDI (D1) | 65 |
| Capacity | ER32 (2-20) |
| A (Gauge) | 85mm |
| L | 112mm |
| T | 18mm |
| B | 94mm |
| B1 | 94mm |
| B2 | 73mm |
| B3 | 70mm |
| K | 14mm |
| S | 10mm |
| N.Max (1/min) | 4000 |
| T.Max. (Nm) | 70 |
BMTAX65E32085
VDI 65 AXIAL DRIVEN TOOLING ER32 COLLET CHUCK TO SUIT BMT 65 COUPLING - 85MM GAUGE - EROGLU
