VDI 65 Radial Driven Tooling ER25 Collet Chuck Shifted to Suit Tsugami Coupling - 64mm Gauge - Eroglu
TSURK65E25B085
Tsugami - VDI 65 - ER25 (2-16) - 64mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

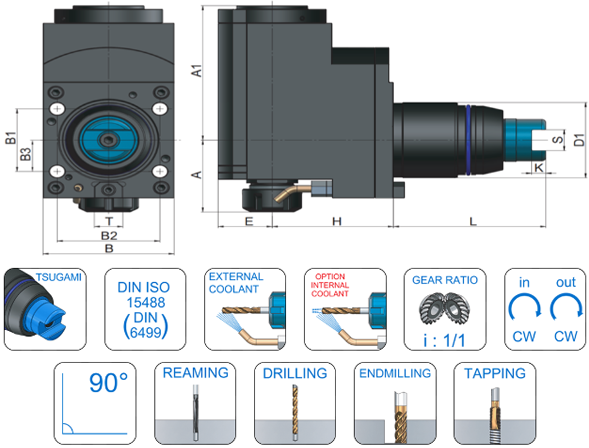

| Coupling | Tsugami M06SY / M08SY |
| VDI (D1) | 65 |
| Capacity | ER25 (2-16) |
| A (Gauge) | 64mm |
| A1 | 116mm |
| E | 38mm |
| H | 85mm |
| L | 107mm |
| T | 20mm |
| B | 92mm |
| B1 | 72mm |
| B2 | 66mm |
| B3 | 27mm |
| K | 10mm |
| S | 18mm |
| N.Max (1/min) | 6000 |
| T.Max. (Nm) | 50 |
TSURK65E25B085
VDI 65 RADIAL DRIVEN TOOLING ER25 COLLET CHUCK SHIFTED TO SUIT TSUGAMI COUPLING - 64MM GAUGE - EROGLU
