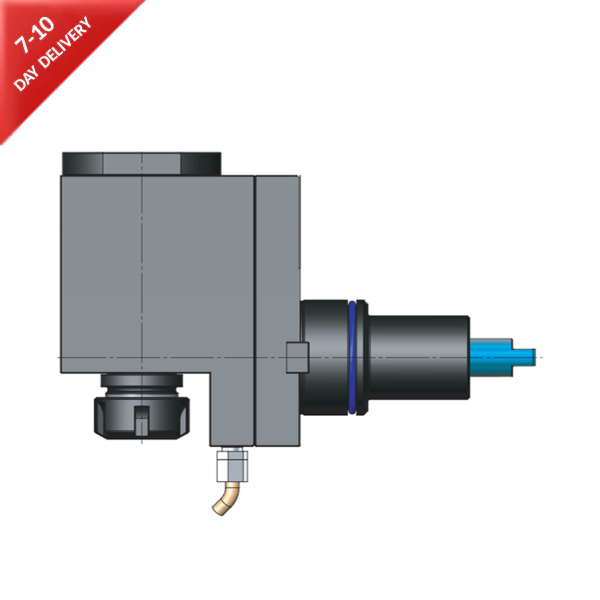

VDI 65 Radial Driven Tooling ER32 Collet Chuck (Shifted) to Suit BMT 65 Coupling - 55mm Gauge - Eroglu
BMTRK65E32AB086
BMT 65 - VDI 65 - ER32 (2-20) - 55mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

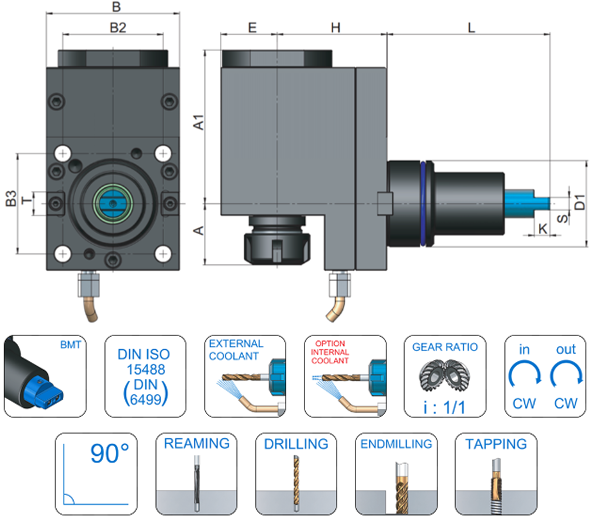

| Coupling | BMT 65 |
| VDI (D1) | 65 |
| Capacity | ER32 (2-20) |
| A (Gauge) | 55mm |
| A1 | 97mm |
| E | 38mm |
| H | 86mm |
| L | 112mm |
| T | 18mm |
| B | 94mm |
| B2 | 73mm |
| B3 | 70mm |
| K | 14mm |
| S | 10mm |
| N.Max (1/min) | 4000 |
| T.Max. (Nm) | 70 |
BMTRK65E32AB086
VDI 65 RADIAL DRIVEN TOOLING ER32 COLLET CHUCK (SHIFTED) TO SUIT BMT 65 COUPLING - 55MM GAUGE - EROGLU
