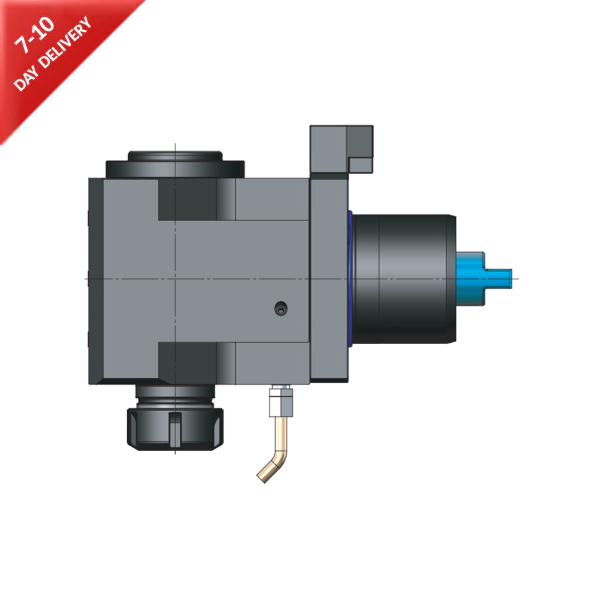

VDI 68 Radial Driven Tooling ER32 Collet Chuck to Suit Takisawa TY Coupling - 86.5mm Gauge - Eroglu
TS2RA68E32090
Takisawa TY 2000 - VDI 68 - ER32 (2-20) - 86.5mm Gauge
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

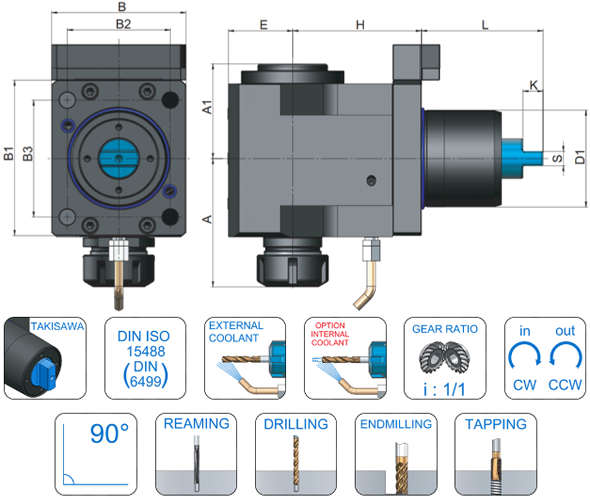

| Coupling | Takisawa TY 2000 |
| VDI (D1) | 68 |
| Capacity | ER32 (2-20) |
| A (Gauge) | 86.5mm |
| A1 | 66.5mm |
| E | 45mm |
| H | 90mm |
| L | 85mm |
| B | 135mm |
| B1 | 93.5mm |
| B2 | 82mm |
| B3 | 72mm |
| K | 14mm |
| S | 10mm |
| N.Max (1/min) | 6000 |
| T.Max. (Nm) | 100 |
TS2RA68E32090
VDI 68 RADIAL DRIVEN TOOLING ER32 COLLET CHUCK TO SUIT TAKISAWA TY COUPLING - 86.5MM GAUGE - EROGLU
